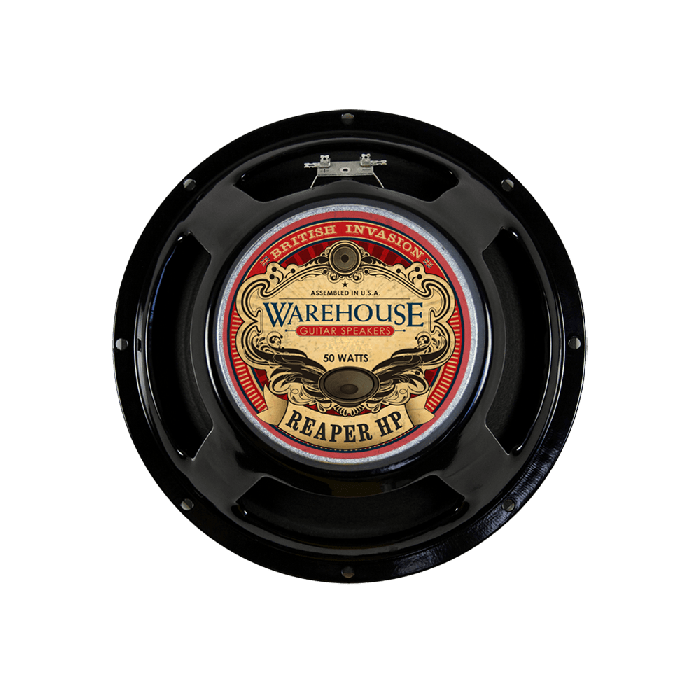

WGS Reaper 12" / 30 W / 16 Ohm

The 12” Reaper™ guitar speaker is a DROP IN REPLACEMENT for Celestion™ G12H30 Anniversary Edition. This speaker sounds like a Green Beret on steroids. Cone breakup does not occur as early as the Green Beret. This speaker sounds great mixed with a Green Beret, Veteran 30, or by itself.

Unit Weight:  10 pounds

Mounting Information

Diameter: 12.2”
Overall depth: 5.3”
Cut-out diameter: 11.1”
Mounting slot dimensions: 0.31”
Number of mounting slots: 8

Thiele-Small Parameters

Resonant Frequency (Fs): 126.60 Hz
DC Resistance (Re): 8.20 Ohm
Coil Inductance (Le): 0.33 mH
Mechanical Q (Qms): 8.56
Electromagnetic Q (Qes): 1.01
Total Q (Qts): 0.90
Compliance Equiv. Vol. (Vas): 10.52 cu ft
Mech. Compliance of Susp. (Cms): 0.06 mm/N
BL Product (BL): 13.58 T-M
Diaphragm Mass Inc. Airload (Mms): 28.57 grams
Surface Area of Cone (Sd): 366.10 cm squared
Sound Pressure Level (spl): 99.04 db
