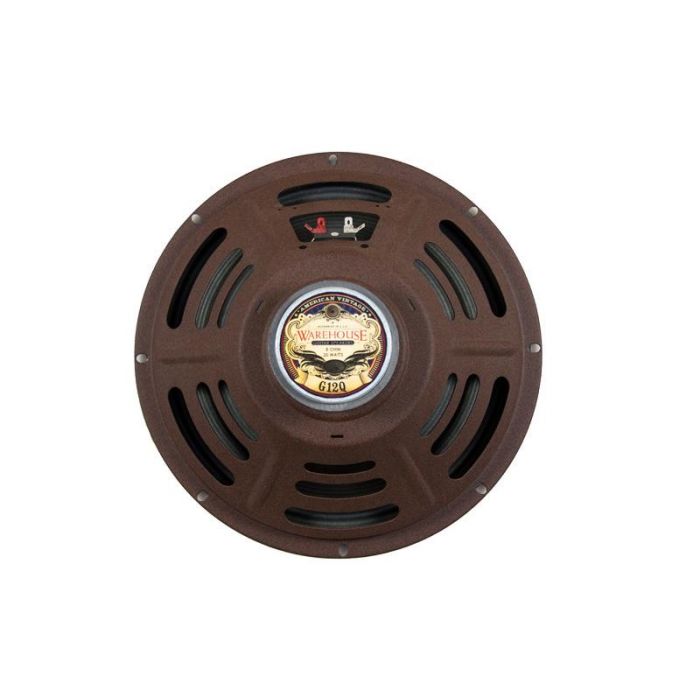

WGS G12Q 12" / 20 W / 8 Ohm

Building on the popularity of our G12C, we developed the G12Q for those times when you want the speaker to add some natural, vintage breakup but maintain clarity. With a 20 oz magnet and a 1" voicecoil, the G12Q definitely has a vintage American flavor. We highly recommend it with 5E3 style circuits. Thiele-Small Parameters Resonant Frequency (Fs):91.91 Hz DC Resistance (Re): 7.70 Ohm Coil Inductance (Le): 0.26 mH Mechanical Q (Qms): 20.75 Electromagnetic Q (Qes): 2.64 Total Q (Qts): 2.35 Compliance Equiv. Vol. (Vas): 22.17 cu ft Mech. Compliance of Susp. (Cms): 0.12 mm/N BL Product (BL): 6.57 T-M Diaphragm Mass Inc. Airload (Mms): 25.71 grams Surface Area of Cone (Sd): 366.10 cm squared Sound Pressure Level (spl): 95.92 db
