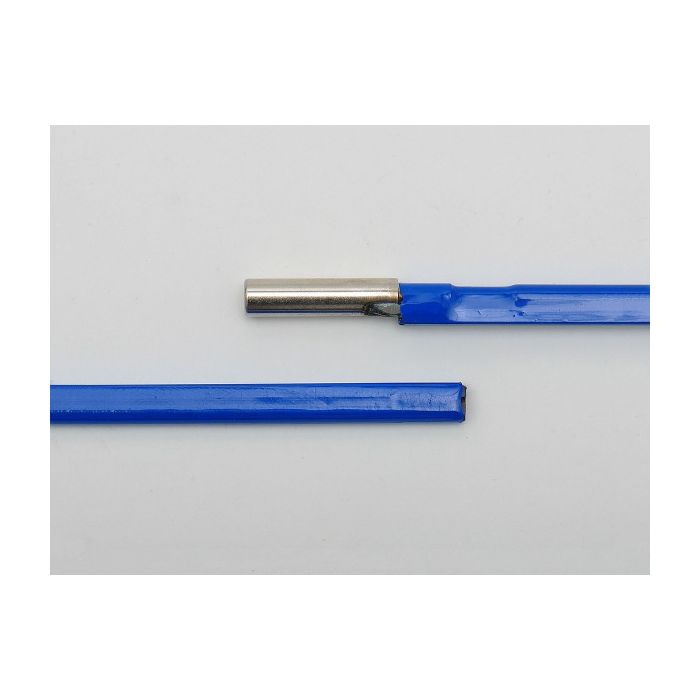

Trussrod, Double/Double, 6x9x440mm

göldo Dual-Action Double Trussrod Dual-action trussrod in a compact design due to two rods that can be braced against each other. The nut is placed in a capsule that is welded to the lower rod. By turning the nut clockwise, the lower rod is shortened at opposite to the upper rod which forces the trussrod to bend in a convex curve. By turning the nut counterclockwise, the tip of the nut presses against the capsule from the inside, pressing the lower rod against the upper rod. The neck is bent concave. Space-saving installation in a straight channel, which also allows use in flat neck profiles. 4mm allen nut. Weight: approx. 165g. 440 x 6 x 9mm
