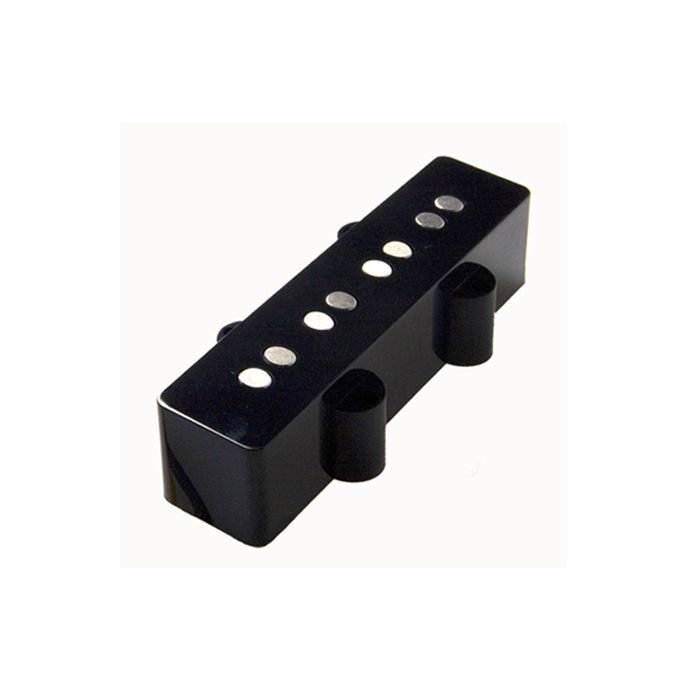

Tonerider Jazz Plus - Bridge

Designed for maximum tonal versatility, the Jazz Plus is the perfect passive pickup for your Jazz Bass. Use the tone control to roll off the high-end and hit the bridge pickup for fat "Jaco" inspired tones, or open up all controls and find enough punch, harmonics and clarity for some serious slap-work. The aged magnets allow for plectrum work that retains detail and a crisp attack.

TECH SPECS
JAZZ PLUS NECK
Model TRJ1N
Magnets Alnico 5 Rods
DCR 7.4k
Inductance 3.2H
Hookup Wire Vintage Braid
Scatter Medium
Winding Direction Counter-Clockwise
JAZZ PLUS BRIDGE
Model TRJ1B
Magnets Alnico 5 Rods
DCR 8.2k
Hookup Wire Vintage Braid
Scatter Medium
Winding Direction Clockwise

DOWNLOADS
Jazz Bass Wiring Diagram (pdf) Jazz Measurements (Imperial) (jpg) Jazz Measurements (Metric) (jpg)
