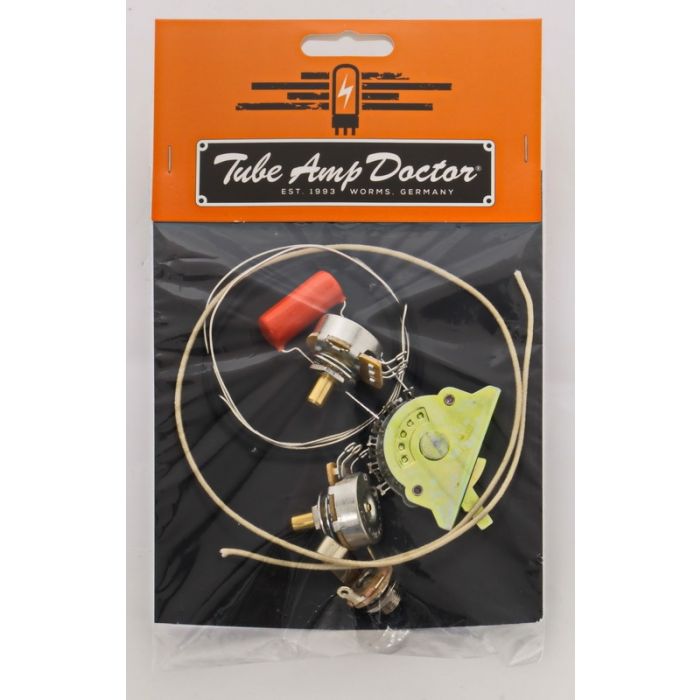

TAD Wiring Kit for T-Style Mod
Levertijd 3-6 werkdagen
Meer informatie over voorraden en verzending
Special upgrade electronics kit for T-style guitars consisting of highest quality components
Significant tonal improvement over many standard electronics
No treble bleed circuit necessary, the custom CTS dimple pots provide a clear and clean tone with no treble loss when the volume control is turned down.
Suitable for T-style guitars with 2 x single-coil pickups (pickups not included)
Controls: 1 x Volume, 1 x Tone, CTS-Dimple Pot, Custom made for TAD
Switch: 4-way, also allows fat sounds, switch positions:
1. bridge
2. bridge & neck parallel (as in the original in the middle position of the switch too)
3. neck
4. bridge & neck in series (humbucker tone)
Cloth covered wire as stranded wire
TAD Sprague Orange Drop capacitor. Round tone with slight low-mid boost when the Tone pot is turned down, retaining a velvety feel.
0,5
meter
CB3220
Push-back-WIRE (stranded), 22awg., fabric covered, white, per meter
0,5
meter
CB3225
Push-back-WIRE (stranded), 22awg., fabric covered, black, per meter
0,5
meter
CB4011
Switching wire, copper wire tinned Ø 0,91mm / 33 A,
1
piece
SW4002
4-Way switch without screws and switch knob
1
piece
CO11
SWITCHCRAFT J11 jack, 6.3mm, mono, open
1
piece
V-47100-225P
0.047uF @ 100V TAD / Sprague Orange Drop capacitor
2
piece
CTS-D-A250K-S
CTS 250k Vintage Audio Taper (30% LOG) Dimple Guitar-Potentiometer, short bushing, solid shaft
1
piece
wiring diagramUpgrade Elektronikkit bestehend aus custom made Komponenten
Erhebliche tonale Verbesserung gegenüber vieler Standard-Elektroniken
Keine Treble Bleed Schaltung nötig, die speziell angefertigten CTS Dimple Pots sorgen für einen klaren und sauberen Ton ohne Höhenverluste beim Zudrehen des Volumenreglers.
Geeignet für T-Style Gitarren mit 2 x Single-Coil Tonabnehmern (Tonabnehmer sind nicht im Lieferumfang enthalten)
Regler: 1 x Volume, 1 x Tone, CTS-Dimple Pot, Custom made for TAD
Schalter: 3-Wege, original CRL USA
Cloth covered wire als Litze (stranded)
TAD Sprague Orange Drop Kondensator Kondensator. Runder Ton mit leichtem Tiefmittenboost beim Herunterregeln des Tone Potis, der eine samtige Note behält.
Kit besteht aus:
0,5
Meter
CB3220
Push-back-WIRE (stranded), 22awg., stoffummantelt, WEISS, per Meter
0,5
Meter
CB3225
Push-back-WIRE (stranded), 22awg., stoffummantelt, SCHWARZ, per Meter
0,5
Meter
CB4011
Schaltdraht, Kupferdraht verzinnt Ø 0,91mm / 33 A,
1
Stück
SW4003
CRL 3-Weg Schalter
1
Stück
CO11
SWITCHCRAFT J11 jack, 6.3mm, mono, open
1
Stück
V-47600
0.047uF @ 600V TAD / Sprague Orange Drop Kondensator
2
Stück
CTS-D-A250K-S
CTS 250k Vintage Audio Taper (30% LOG) Dimple Guitar-Potentiometer, short bushing, solid shaft
1
Stück
SchaltplanUpgrade wiring kit consisting of highest quality components
Significant tonal improvement over many standard electronics
No treble bleed circuitry required, the custom CTS dimple pots provide a clear and clean tone without any treble loss when the volume control is turned down.
Suitable for ST-style guitars with 3 x single-coil pickups (pickups are not included)
Controls: 1 x Volume, 2 x Tone, CTS-Dimple Pot, custom made for TAD
Switch: 5-way, original CRL USA
Cloth covered wire as stranded wire
TAD Sprague Orange Drop condenser (model series 225P) Polyester (Film/Foil) condenser. Well-rounded tone with a slight boost of the lower-mids when the tone-pot is turned down, retaining a warm and soft feel.
0,5
meter
CB3220
Push-back-WIRE (stranded), 22awg., fabric covered, white, per meter
0,5
meter
CB3225
Push-back-WIRE (stranded), 22awg., fabric covered, black, per meter
0,5
meter
CB4011
Switching wire, copper wire tinned Ø 0,91mm / 33 A,
1
piece
SW4001
CRL 5-Way Switch, without screws or switch knob
1
piece
CO11
SWITCHCRAFT J11 jack, 6.3mm, mono, open
1
piece
V-47100-225P
0.047uF @ 100V TAD / Sprague Orange Drop 225P capacitor
3
piece
CTS-D-A250K-SK
CTS 250k Vintage Audio Taper (30% LOG) Dimple Guitar-Potentiometer, knurled 24 teeth shaft
1
piece
wiring diagram
Merk | Tube Amp Doctor |
---|---|
EAN | 4251594917762 |
