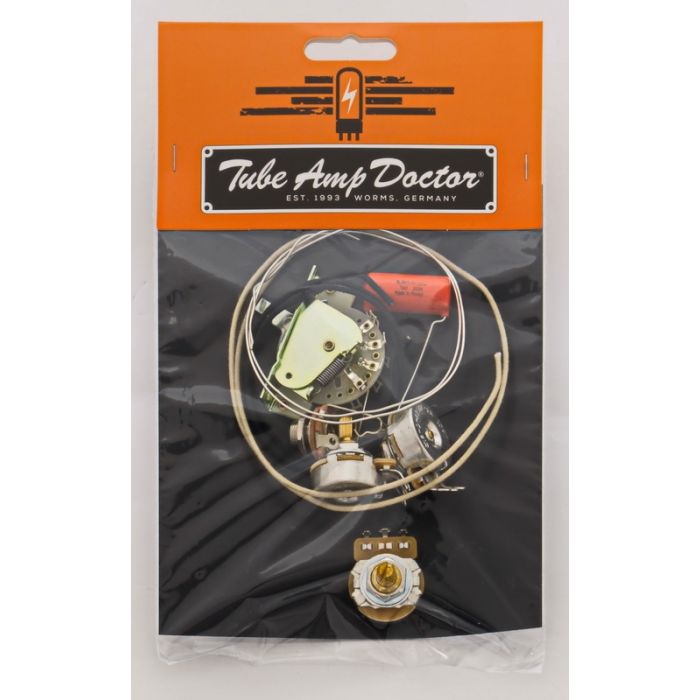

TAD Wiring Kit for ST-Style Guitars
Levertijd 3-6 werkdagen
Meer informatie over voorraden en verzending
Upgrade wiring kit consisting of highest quality components
Significant tonal improvement over many standard electronics
No treble bleed circuitry required, the custom CTS dimple pots provide a clear and clean tone without any treble loss when the volume control is turned down.
Suitable for ST-style guitars with 3 x single-coil pickups (pickups are not included)
Controls: 1 x Volume, 2 x Tone, CTS-Dimple Pot, custom made for TAD
Switch: 5-way, original CRL USA
Cloth covered wire as stranded wire
TAD Sprague Orange Drop condenser (model series 225P) Polyester (Film/Foil) condenser. Well-rounded tone with a slight boost of the lower-mids when the tone-pot is turned down, retaining a warm and soft feel.
0,5
meter
CB3220
Push-back-WIRE (stranded), 22awg., fabric covered, white, per meter
0,5
meter
CB3225
Push-back-WIRE (stranded), 22awg., fabric covered, black, per meter
0,5
meter
CB4011
Switching wire, copper wire tinned Ø 0,91mm / 33 A,
1
piece
SW4001
CRL 5-Way Switch, without screws or switch knob
1
piece
CO11
SWITCHCRAFT J11 jack, 6.3mm, mono, open
1
piece
V-47100-225P
0.047uF @ 100V TAD / Sprague Orange Drop 225P capacitor
3
piece
CTS-D-A250K-SK
CTS 250k Vintage Audio Taper (30% LOG) Dimple Guitar-Potentiometer, knurled 24 teeth shaft
1
piece
wiring diagram
Merk | Tube Amp Doctor |
---|---|
EAN | 4251594917724 |
