StewMac Golden Age pre-wired harness for Gibson Les Paul

Assembled and soldered in the USA using top components, including Switchcraft switches and CTS pots for the best sound. Ready to drop into your guitar!

- Premium hand-wired for drop-in retrofit
- Upgrade your old wiring
- Save work and save time on new builds
- Soldered in our Athens, Ohio shop

We professionally hand-soldered these harnesses using the best brand-name components for long life and great sound: CTS pots, Orange Drop caps, Switchcraft toggle switch and output jack and cloth push-back wire. Some simple soldering is needed to connect the switch and jack after you've threaded the wires through the guitar channels. Pickup lead wires will also need to be soldered to the harness.

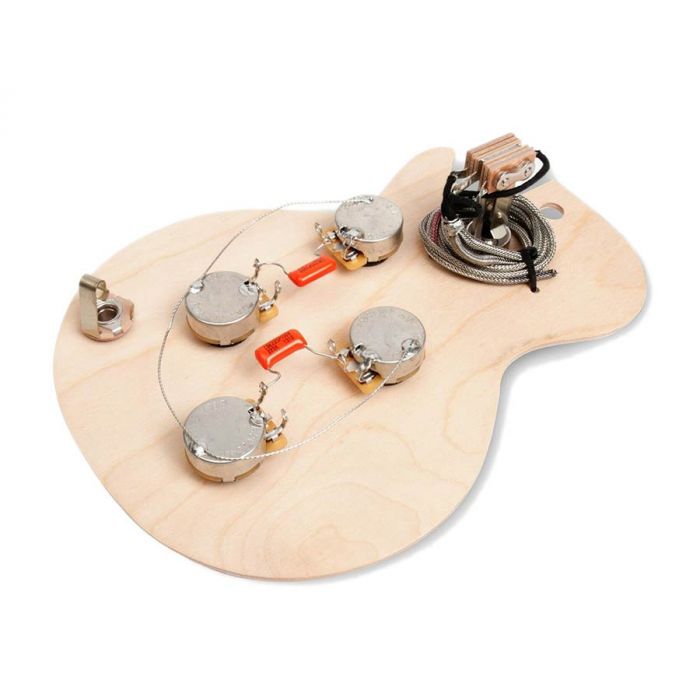

Each Golden Age harness comes to you mounted on a reusable plywood template, which is a tool in itself: save it for future wiring jobs. The template holds the components correctly so the finished harness fits neatly into the guitar's wiring cavity.

Switchcraft Toggle Switch Specs
Body cavity depth: 1-1/2" (38.10 mm)
Mounting hole diameter: 1/2" (12.70 mm)
Thread height: 7/32" (5.56 mm)

CTS Control Pot Specs:
Resistance: 500K-ohm
Shaft diameter: 0.235" (5.95 mm), split shaft, fine knurling
Thread: 3/8" x 32
Threaded portion: 3/4" (19.05 mm)
Required mounting hole diameter: 3/8" (9.52 mm)

Orange Drop Capacitor Specs:
Value: .022uF
Code: 223K

Switchcraft Output Jack Specs:
Accepts standard 1/4" plugs
Mono
Mounting hole diameter: 3/8" (9.52 mm)
Thread: 3/8 x 32
Threaded portion height: 1/4" (6.35 mm)
