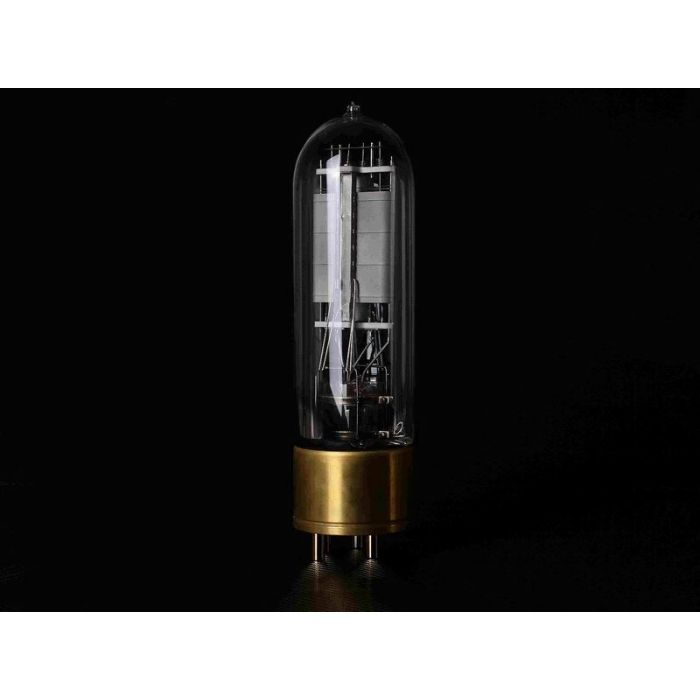

Psvane WE212 Replica (single), in exclusive gift box
Levertijd 3-6 werkdagen
Meer informatie over voorraden en verzending
Psvane WE212 has exactly the same sonic performance as the original Western Electric WE212.
a timeless beauty in perfect build quality for years of your audio performance
The WE212 is the superlative in several aspects:
- the most complex in manufacturing
- the most expensive audio tube made today
- the most sophisticated listening experience
As the exclusive 5A Distributor for Psvane in Europe we also have this outstanding tube on stock!
We deliver these tubes in pairs if 2 pieces or multiples are ordered.
Specifications
dimensions: 340mm high, diameter 92mm
Heater
Uf 14V
If 6A
Static Parameter
Ua 1500V
-Ug 57V
Ia 95mA
u 16
RI 1.9K
S 8.5mA/V
Maximum Ratings
Max.direct plate voltage 3000V
Max.direct plate current 350mA
Max.plate dissipation 140W
Max.direct grid current 75mA
Max.plate voltage for frequencies between 1.5Mc 1000V
Direct Interelectrode Capacitances
Grid to plate 18.8pF
Grid to filament 14.9pF
Plate to filament 8.6pF
Class A Audio Amplifler or Modulator
Direct plate voltage 1500V 1250V
Grid bias - 57V -40V
Direct plate current 170mA 200mA
Plate dissipation 140W 140W
Load impedance 5000Ω 3000Ω
Undistorted output 35W 30W
Grid Bias Modulator
Direct plate voltage 3000V
Grid bias -260V
Plate dissipation 100W
Load impedance 8000Ω
Pead power output 120W
| Merk | Psvane |
|---|
