Marshall style PC100K LIN

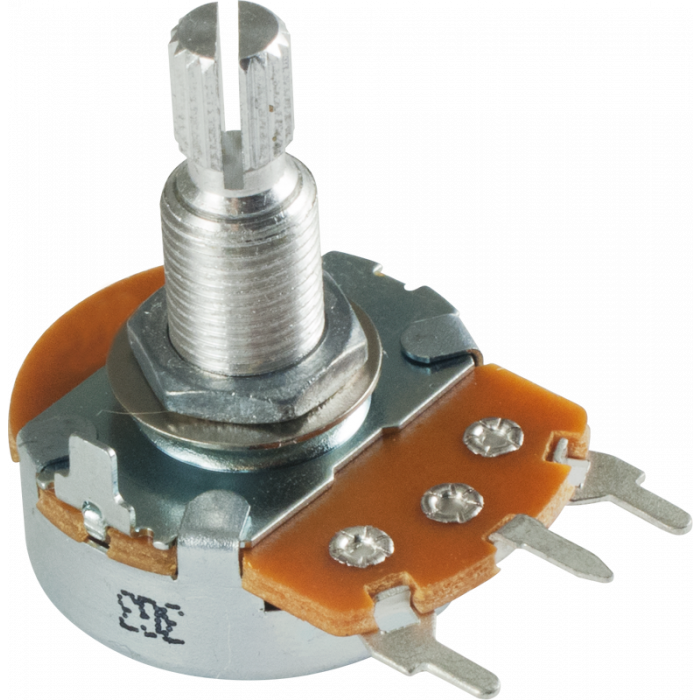

Marshall style PC100K LIN potmeter. PC mount,  24mm Diameter, Split Shaft, used for JCM800 Models like 2210, 2205, 3005 etc.

Also suitable for many JCM800 Transitor models such as Lead 12, Mosfet 100 etc.

Body Depth    11.5 mm
Body Width    24 mm
Bushing Length    11.5 mm
Bushing Thread    M8X0.75
Hex Nut Thickness    2.0 mm
Hex Nut Width    11 mm
Insulation Resistance    ＞100 MΩ at 500VDC
Life    15,000 cycles
Manual Soldering Max Temp for 3 sec.    350 °C
Max. Working Voltage    250V
Max Rotational Stopper Strength    6Kgf
Operating (Useable) Temperature    -10 °C to +70 °C
Rated Wattage (Power)    0.25W
Rotational Torque    20-200 gf-cm
Shaft Diameter    6 mm
Sliding Noise    <47 mV
Tap Residual Resistance    ≤100 Ω
Tolerance    ±20%
Total Rotational Angle    300° ±5°
Total Shaft Length    21 mm
Washer I.D.    8.1 mm
Washer O.D.    14 mm
Washer Thickness    0.4 mm
Withstand Voltage    500 VAC for 1 min.
