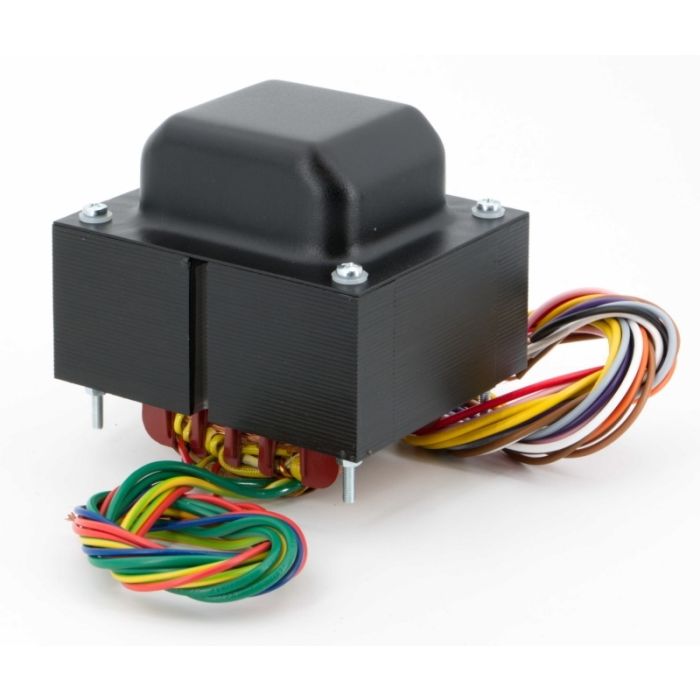

Mains transf. for Mesa Boogie Triple-Rectifier

Power Transformer for Triple Rectifier Series, suitable for old 2 Channel and current 3 Channel models and  Roadking (Series I,Stage I), supports all primary voltages



Can be used as an upgrade for the 561140 and 561141 transformers of the Dual Rectifier Solo Head!





Exportversion, replaces the 120V domestic version (561160)



Lamination: 4 1/2", Stacking: 2 3/4". Mounting on 3 3/4" x 3"



Installation height 10mm min.





For 230V/240V Conversion please also order:

MOV:

1x Z-VDR275 or 2x Z-VDR130



Suppressor Caps:

2x V-X-2

1x V-X-47 (2x in newer models)



Power cord: Please check if connector is removable or fixed model:

PC263

PC265



Fuse (Z-USSI-T3.15)

Z-USSI



Connection:



primary:

T2            Pink (Spongy/Tweed for 220/230/240V)

T1            Orange (Spongy/Tweed for 100/117V)



0V            Black

100V            Violet

117V            Red

220V            Grey

230V            White

240V            Brown



secondary:

[email protected]      Red

50V            Blue

0V            Green/Yellow

355V            Red



[email protected]         Green

0V            Green/Yellow

3.15V               Green



5V@10A            Yellow

0V            Yellow



12.8V@1A      Brown

0V            Brown
