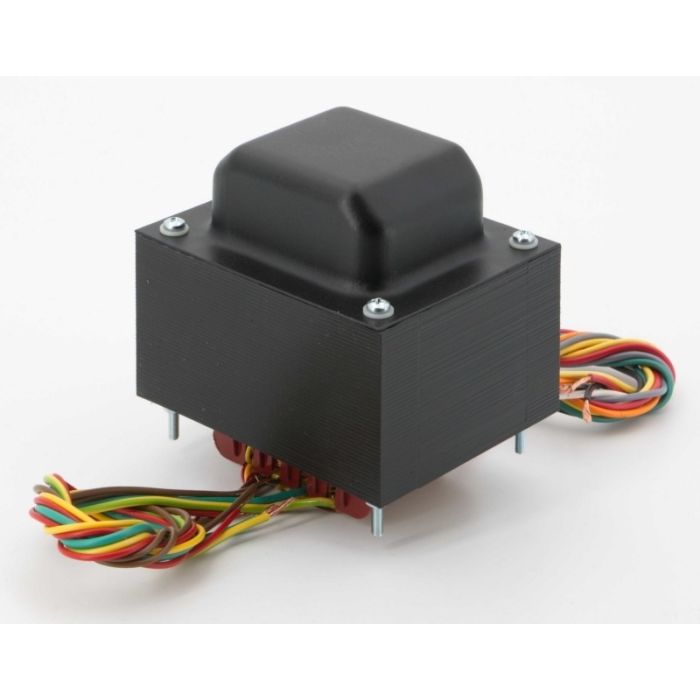

mains transformer for Fender® 135W models: This 013830 mainstranformer is used for all 135 Watt Fender amps of the 1970s: Twin Reverb, Dual-Showman Reverb, Bassman 135, Quad Reverb and Vibrasonic Reverb.

Check the power output marked at the speaker jack at all 135 Watt models.



lamiantion: 4 1/2",



Now with all voltage taps of the original



chassis placement: 115mm x 96mm.

cutout: 76mm x 68mm.

Mounting on 95.5mm x 76mm



Primary:

      0V            Black

      100V            White

      120V            Orange

      127V            Grey

      220V            Yellow

      240V            Green

      260V            Red



Secondary:

      185V      600mA      Red

      0V            Yellow

      185V            Red



      56V      75mA      Brown

      0V            Brown



      6,3V      6A      Green/Yellow

      0V            Green



NOTE: the earlier 100 Watt-Versions (since 1964- mid 1970s) use the 125P34AX mainstransformer.
