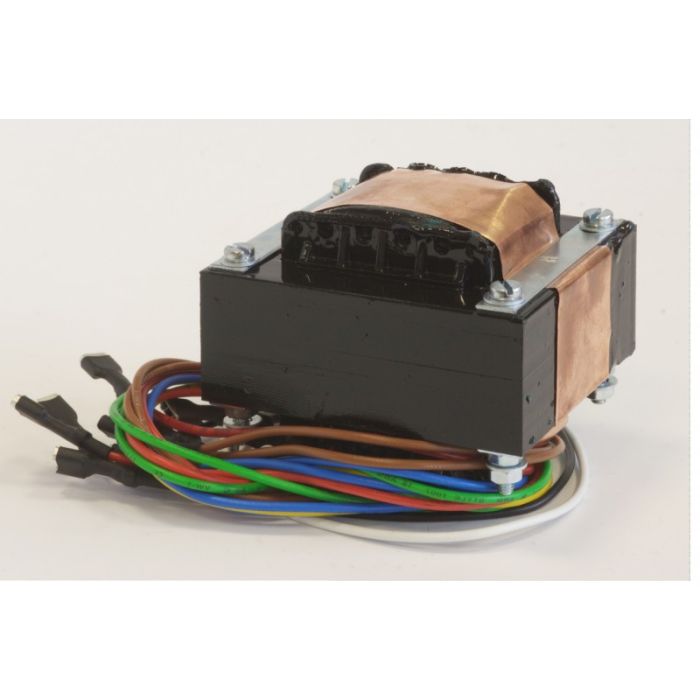

MAINS Transf. for Fender Blues Junior 230V

MAINS transformer for: Fender® Blues Junior (220,230,240V), also for Blues Junior III Upgrade for Fender Pro Junior Amp (004-1783-000) Primary #70005 Thermal Breaker Pink Thermal Breaker Pink 0V Violet 220V White 230V Grey 240V Black Secondary: 260V 170mA Red 0V Red 6,3V 3A Green 0V Green 20V 100mA Brown 0V Brown Connection with Board labeled 1998 REV B and REV C: Primary: Thermo Pink wire to CP 5 (formerly unused) Thermo Pink wire to CP 7 (formerly unused) 0V Violet wire to CP 8 (formerly black) 230V Grey wire to S2B (formerly white) Secondary: HV Red To CP 12 (formerly red) HV Red To CP 13 (formerly red) Bias Brown To CP 16 (formerly brown) 0V Brown To CP 17 (formerly brown) 6,3V Green To CP 18 (formerly green) 0V Green To CP 10 (formerly green) Connection with Board labeled 2001, 2002, 2003, 2010 (Blues Junior III) Primary: Thermo Pink wire to P4 Thermo Pink wire to P7 0V Violet wire to P 8 230V Grey wire to S2B Secondary: HV Red To P 11 HV Red To CP 12 Bias Brown To P 13 0V Brown To P 14 6,3V Green To P 15 0V Green To P 16 PRO JUNIOR (all versions): Primary #70005 Thermal Breaker Pink to S1B Thermal Breaker Pink to CP 9 0V Violet to CP 10 220V White to CP8 230V Grey to CP 6 240V Black to CP11 Secondary: 260V 170mA Red to P3 0V Red to P4 6,3V 3A Green to P5 0V Green to P6 20V 100mA Brown UNUSED 0V Brown UNUSED
