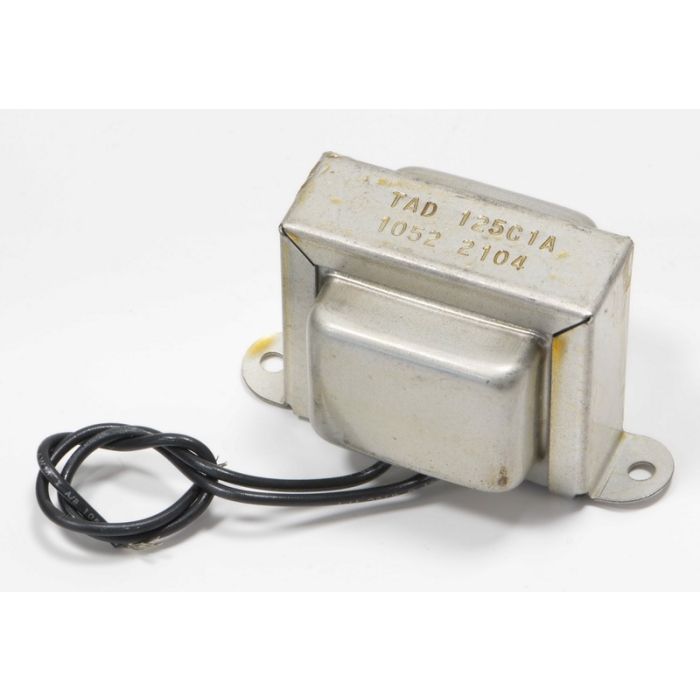

Choke 4H @ 90mA, 105 Ohm DCR
Used by Fender® in:
Super Reverb, Twin Reverb, Bandmaster Reverb, Bassman (also 100W Version), Showman etc.
(= 022699) US-made
upgrade for Deluxe Reverb
Used in Boogie® MKI, MKII, MK III, MKIV, Dual Rectifier Serie, 2:90, 50/50 and many more. (replaces 550381)
Acoustic 560032 replacement
Upgrade for Music Man, replaces 1-C-65130 and Fender 002-2707-000 (Blues Deluxe, Blues Deville, also Reissues and Hot Rod series): both need one additional drill.
Also used in the TAD Kits : Plexi 45, Plexi 100 LEAD, Plexi 45-100 and Plexi 100WMV
Mounting on 72mm
overall dimension: HxWxD: 49 x 59 x 46mm, clips: 83mm
wires are ca. 16cm und 12cm
