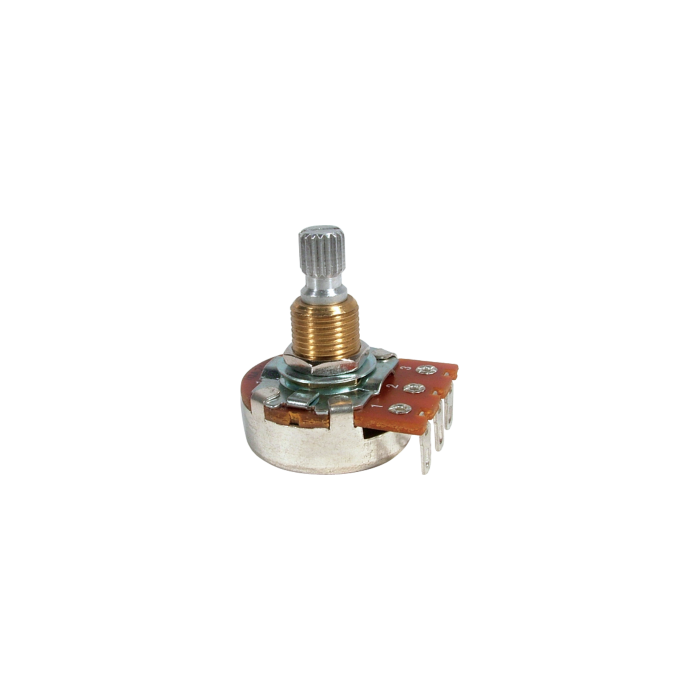

Bourns Potentiometer GTR 250k lin split shaft
€ 4,95
Leveranciersvoorraad:
NNB
Artikelnummer
TF-49012
Specifications:
- Taper: Liniar
- Standard Resistance Tolerance: ±20%
- Operating Temperature: -10°C to °C
- Power Rating: 0.25W
- Maximum Operating Voltage: 250V
- Rotational Noise: 150mV max.
- Mechanical Angle: 300° ±5°
- Rotational Torque: 29 g-cm typical
- Stop Strength: 8 kg-cm min.
- Rotational Life: 15,000 cycles min.
- Soldering Condition: Manual Soldering: 300°C within 3 sec. Wave Soldering: 260°C within 3 sec.
-
Hardware: One flat washer and mounting nut supplied per potentiometer with bushing
Features: - Low torque
- Carbon element
- Plain or Knurled shaft option
- ESD wave washer
- Metal bushing
- Metal shaft
- Rear solder lugs
- RoHS Compliant
| Potmeter waarde | 250k |
|---|---|
| Potmeter verloop | Lineair |
| Potmeter type | Soldeeroog |
| Shaft type | Split shaft |
| Toepassing | Gitaren |
| Merk | Bourns |
| EAN | 609722164047 |
